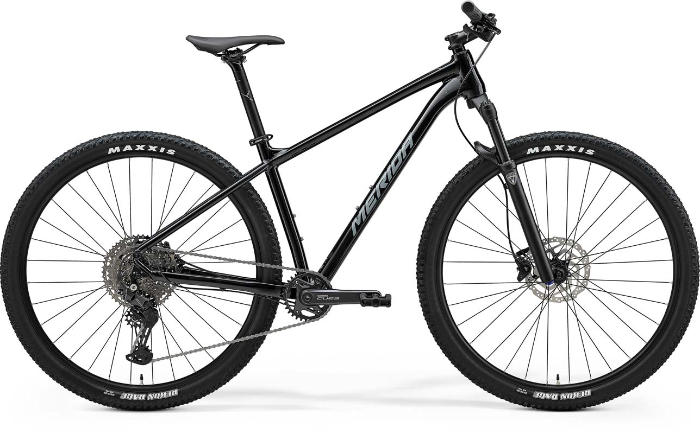

| FRAME | BIG.NINE TFS IV; MAT aluminum; 29 WHS; 135x9 AST; BSA BBR; Smooth welding |
| SHOCK | |
| FORK | Manitou Markhor Comp; Air; 100 STR; Tapered; Lockout; 51mm fork offset |
| BRAKE - FRONT | Shimano M4100; 2 piston |
| BRAKE - REAR | Shimano M4100; 2 piston |
| ROTOR - FRONT | Shimano RT10; 180mm |
| ROTOR - REAR | Shimano RT10; 160mm |
| CHAIN | KMC xGlide |
| CHAINGUARD | |
| CHAINWHEEL | Shimano CUES U6000; 32 ATC |
| CRANK/SIZE | 170 mm-S, 175 mm-M up |
| BB SET | Shimano MT500 |
| DERAILLEUR - FRONT | |
| DERAILLEUR - REAR | Shimano CUES U6000; GS |
| FREEWHEEL | Shimano LG400; 11-50 ATC; 11 GER |
| PEDAL | VP VPE-891 |
| GRIP | MERIDA COMP EC |
| H-BAR | MERIDA EXPERT CC; MAT aluminium; 720 WHB; 10 RHB |
| H-B STEM | MERIDA COMP CC; MAT aluminium; 31.8 DSH; 7 ASD |
| H-STEM/SIZE | S:70 mm, M:80 mm, L:90 mm, XL:100 mm, XXL:110 mm |
| HUB - FRONT | Shimano QC300; 100x9 WHF; 32 SPH; Centerlock |
| HUB - REAR | Shimano QC300; 135x9 WHR; 32 SPH; Centerlock |
| AXLE - REAR | |
| RIM | MERIDA COMP CC II; 25 IWR; MAT aluminium; tubeless ready |
| SADDLE | MERIDA COMP SL; 25% recycled material; V-mount; incl. MERIDA minitool |
| SEAT CLAMP | MERIDA COMP QR |
| SEAT POST | MERIDA COMP CC; MAT aluminium; 30.9 DSP; 0 SSB |
| SHIFTER - FRONT | |
| SHIFTER - REAR | Shimano CUES U6000 |
| TYRE - FRONT | Maxxis Rekon Race; 29x2.25"; wire |
| TYRE - REAR | Maxxis Rekon Race; 29x2.25"; wire |
| BOTTLE CAGE | |
| E-SHIFT PARTS-1 | |
| OTHER 1 | |
| OTHER 2 | |
| OTHER 3 | |
| OTHER 4 | |
| OTHER 5 |
| Frame Name | BIG.NINE TFS IV | BIG.NINE TFS IV | BIG.NINE TFS IV | BIG.NINE TFS IV | BIG.NINE TFS IV |
| Frame Size Name | S | M | L | XL | XXL |
| Tyre Sizes | 29" | 29" | 29" | 29" | 29" |
| Frame Size Inch | |||||
| ST seat tube [mm] | 370 | 430 | 470 | 510 | 560 |
| Ste Seat Tubes Effective Mm | |||||
| STA seat tube actual [mm] | |||||
| TT top tube [mm] | 570 | 590 | 610 | 630 | 650 |
| CS chain stay length [mm] | 440 | 440 | 440 | 440 | 440 |
| HTA head tube angle [°] | 70 | 70 | 70 | 70 | 70 |
| STA seat tube angle [°] | 73 | 73 | 73 | 73 | 73 |
| Stae Seat Tube Angle Effective Deg | |||||
| Staa Seat Tube Angle Actual Deg | |||||
| BD bottom bracket drop [mm] | 60 | 60 | 60 | 60 | 60 |
| HT head tube [mm] | 100 | 115 | 130 | 145 | 160 |
| FL fork length [mm] | 506 | 506 | 506 | 506 | 506 |
| FO fork offset [mm] | |||||
| R reach [mm] | 382 | 398 | 414 | 429 | 445 |
| S stack [mm] | 614 | 628 | 642 | 656 | 670 |
| WB wheel base [mm] | 1069 | 1090 | 1110 | 1131 | 1152 |
| SH stand over height [mm] | 679 | 727 | 763 | 800 | 843 |
