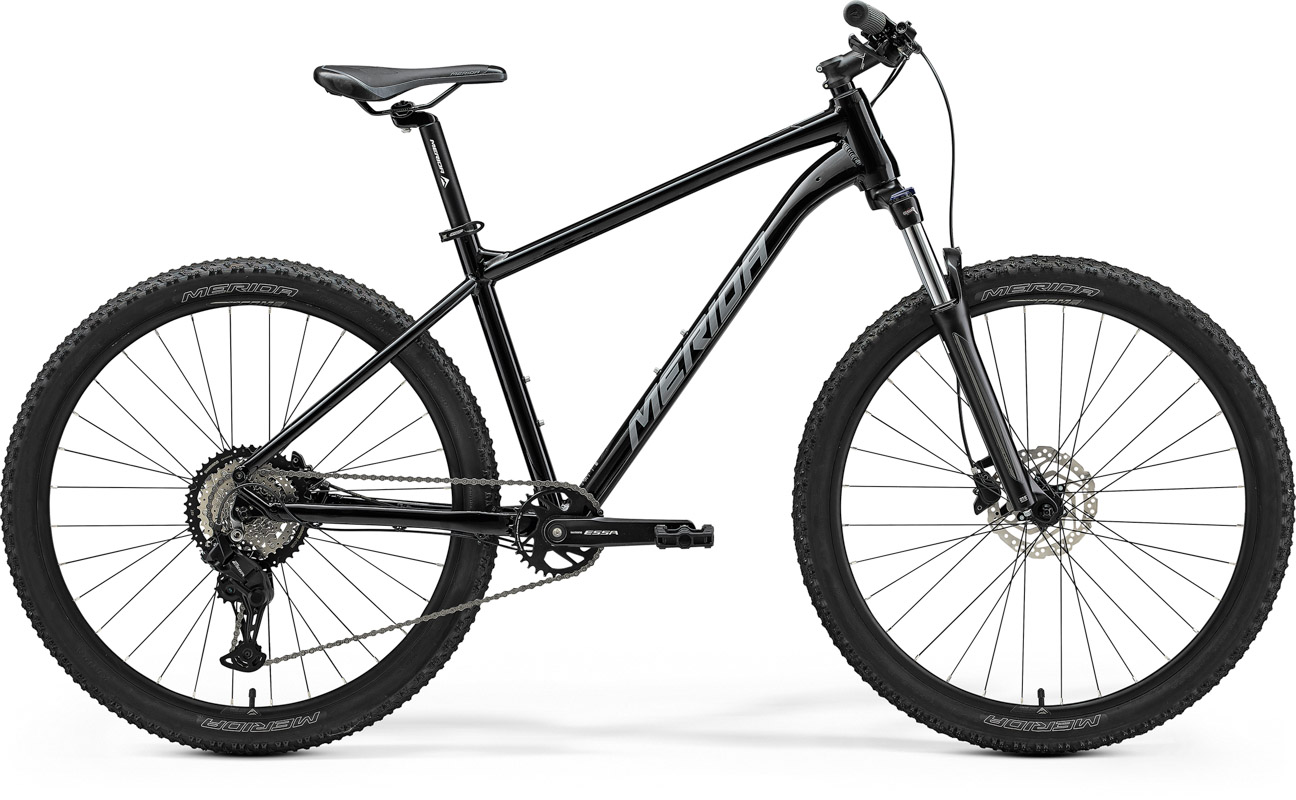

| FRAME | BIG.SEVEN TFS IV; MAT aluminium; 27.5x2.25" max. WHS; 135x9 AST; BSA BBR |
| SIZE | XS-S-M-L |
| FORK | SR Suntour XCT30 HLO; Coil; 100 STR; Lockout; 27.5x2.25" max. WHS |
| BRAKE LEVER | |
| BRAKE - FRONT | Shimano BR-MT200; hydraulic brake |
| BRAKE - REAR | Shimano BR-MT200; hydraulic brake |
| ROTOR - FRONT | Shimano RT10; 160 mm |
| ROTOR - REAR | Shimano RT10; 160 mm |
| CHAIN | KMC Z8.3 |
| CHAINWHEEL | Shimano ESSA FC-U2001 32 ATC; MAT Aluminium |
| CRANK/SIZE | 170 mm-XS/S, 175 mm-M/L |
| BB SET | Shimano BB-UN101 73-123 |
| DERAILLEUR - FRONT | |
| DERAILLEUR - REAR | Shimano ESSA RD-U2000-8; GS |
| FREEWHEEL | Shimano CS-HG400-8; 11-45 ATC; 8 GER |
| PEDAL | VP VPE-891 |
| GRIP | MERIDA EC |
| HANDLEBAR | MERIDA CC; MAT aluminium; 690 WHB; 15 RHB |
| H-B STEM | MERIDA CC; MAT aluminium; 31.8 DSH; 6 ASD |
| H-STEM/SIZE | 70 mm-XS/S, 90 mm-M/L, |
| HEAD SET | MERIDA M2345 |
| HUB - FRONT | Shimano TX505; 100x9 WHF; 32 SPH; Centerlock |
| HUB - REAR | Shimano TX505; 135x9 WHR; 32 SPH; Centerlock |
| RIM | MERIDA CC; 17 IWR; MAT aluminium |
| SADDLE | MERIDA Sport comfort |
| SEAT CLAMP | MERIDA COMP QR |
| SEAT POST | MERIDA CC; 30.9 DSP; 15 SSB; MAT aluminium |
| SHIFTER - FRONT | |
| SHIFTER - REAR | Shimano ESSA SL-315-8R |
| INNER TUBE | 27.5*2.2 A.V |
| TYRE - FRONT | MERIDA K1080; 27.5x2.2"; wire |
| TYRE - REAR | MERIDA K1080; 27.5x2.2"; wire |
| Frame Name | BIG.SEVEN TFS IV | BIG.SEVEN TFS IV | BIG.SEVEN TFS IV | BIG.SEVEN TFS IV |
| Frame Size Name | XS | S | M | L |
| Tyre Sizes | 27.5" | 27.5" | 27.5" | 27.5" |
| Frame Size Inch | ||||
| ST seat tube [mm] | 340 | 380 | 440 | 480 |
| Ste Seat Tubes Effective Mm | ||||
| STA seat tube actual [mm] | ||||
| TT top tube [mm] | 550 | 570 | 590 | 610 |
| CS chain stay length [mm] | 430 | 430 | 430 | 430 |
| HTA head tube angle [°] | 69 | 69 | 69 | 69 |
| STA seat tube angle [°] | 73 | 73 | 73 | 73 |
| Stae Seat Tube Angle Effective Deg | ||||
| Staa Seat Tube Angle Actual Deg | ||||
| BD bottom bracket drop [mm] | 30 | 30 | 30 | 30 |
| HT head tube [mm] | 100 | 115 | 130 | 145 |
| FL fork length [mm] | 487 | 487 | 487 | 487 |
| FO fork offset [mm] | ||||
| R reach [mm] | 378 | 394 | 409 | 425 |
| S stack [mm] | 563 | 577 | 591 | 605 |
| WB wheel base [mm] | 1056 | 1078 | 1099 | 1120 |
| SH stand over height [mm] | 649 | 689 | 740 | 778 |
