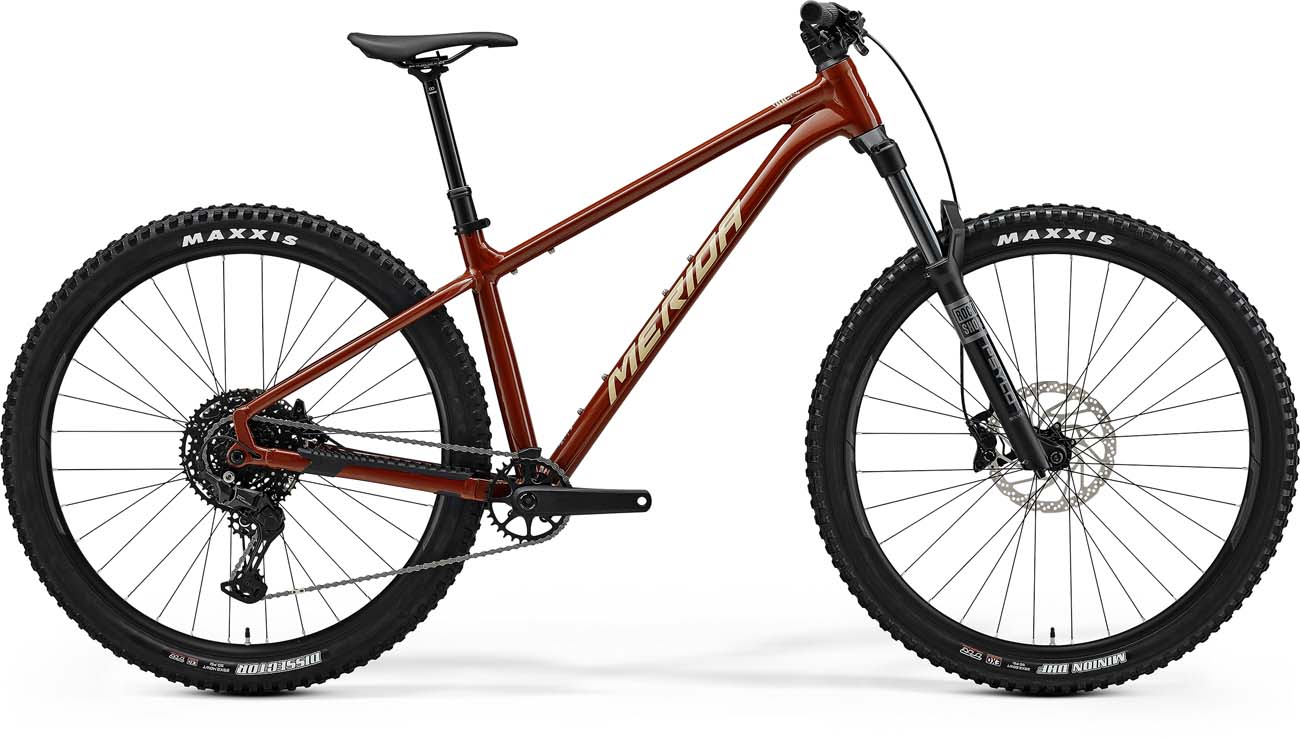

A passion for trail fun, all wrapped up in a no-nonsense package. The BIG.TRAIL 500 offers handling that at inspires confidence and pushes you to go that little bit further in your search for true trail connection. Our top-quality aluminium frame is paired with tough, trail-ready 29er tyres, a 140 mm travel fork and a long travel dropper post to add confidence and capability to any ride.
* Durable double butted aluminium frame
* 140 mm RockShox Psylo fork with 35 mm chassis for incredible stiffness
* Progressive trail bike geometry with long reach, slack head angle and steep seat angle
* 29er wheels specced with 2.5" front and 2.4" rear tyre with aggressive trail pattern
* Extremely low standover height paired with long travel dropper posts
* Powerful 4-piston Shimano front brake paired with lightweight 2-piston brake
| FRAME | BIG.TRAIL TFS II; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBR |
| SHOCK | |
| FORK | Rock Shox Psylo Silver RC; Air; 140 STR; platform |
| BRAKE - FRONT | Shimano MT410; 4 piston |
| BRAKE - REAR | Shimano MT4100; 2 piston |
| ROTOR - FRONT | Shimano RT30; 203mm |
| ROTOR - REAR | Shimano RT30; 180mm |
| CHAIN | KMC xGlide |
| CHAINGUARD | MERIDA EXPERT TR ISCG05 |
| CHAINWHEEL | MERIDA Expert TR II; 32 ATC |
| CRANK/SIZE | 165mm XSHORT and SHORT; 170mm MID, LONG und XLONG |
| BB SET | |
| DERAILLEUR - FRONT | |
| DERAILLEUR - REAR | Shimano CUES U6000; GS |
| FREEWHEEL | Shimano LG300; 11-48 ATC; 10 GER |
| PEDAL | |
| GRIP | MERIDA COMP EC |
| H-BAR | MERIDA EXPERT TR II; MAT aluminium; 780 WHB; 18 RHB |
| H-B STEM | MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD |
| H-STEM/SIZE | 40 mm |
| HUB - FRONT | Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock |
| HUB - REAR | Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock |
| AXLE - REAR | MERIDA COMP TR; including removeable lever, 6/4mm allen key |
| RIM | MERIDA COMP TR; 29 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included) |
| SADDLE | MERIDA COMP SL; 25% recycled material; V-mount |
| SEAT CLAMP | MERIDA EXPERT |
| SEAT POST | MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 150 SPT?S: 170 SPT?M/L: 200 SPT?XL: 230 SPT |
| SHIFTER - FRONT | Shimano SL-MT500-L |
| SHIFTER - REAR | Shimano CUES U6000 |
| TYRE - FRONT | Maxxis Minion DHF; 29x2.5"; fold; TR EXO Dual |
| TYRE - REAR | Maxxis Dissector; 29x2.4"; fold; TR EXO Dual |
| BOTTLE CAGE | |
| E-SHIFT PARTS-1 | |
| OTHER 1 | |
| OTHER 2 | |
| OTHER 3 | |
| OTHER 4 | |
| OTHER 5 |
