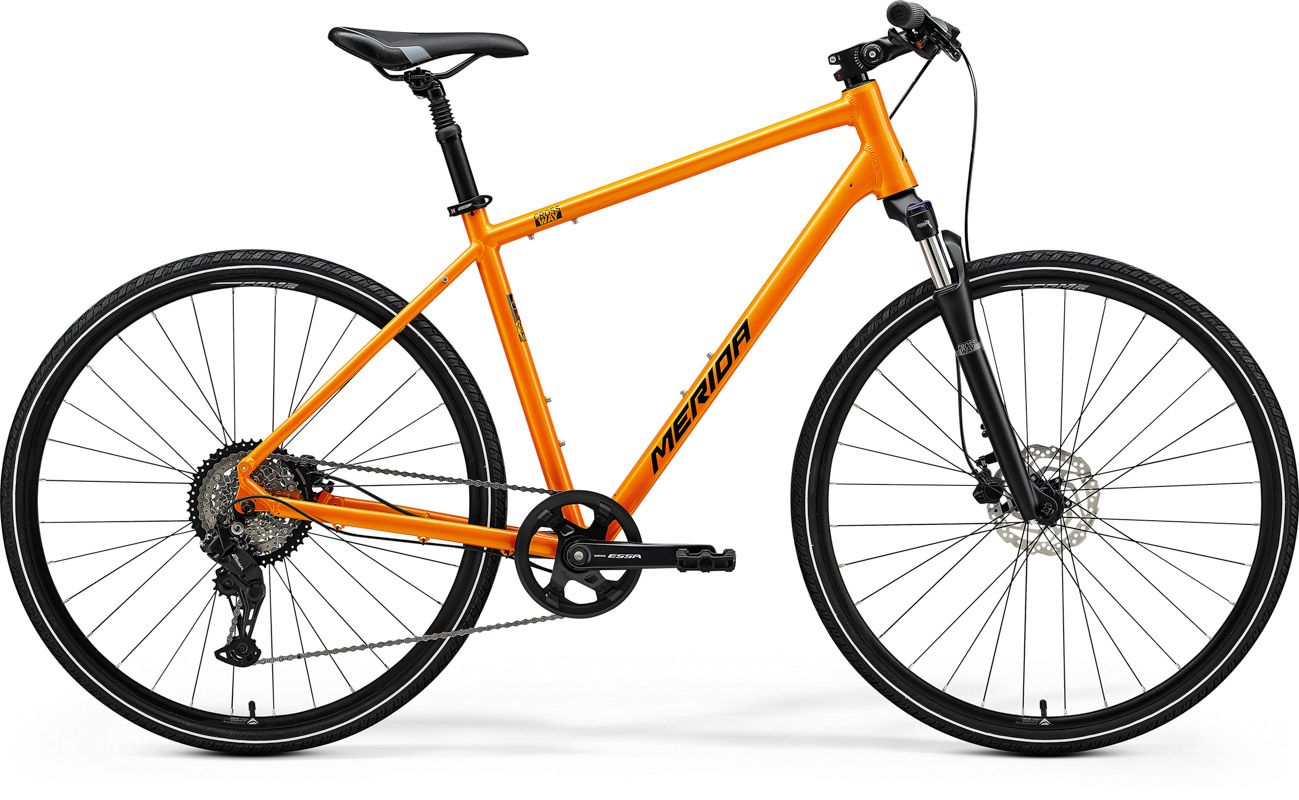

| FRAME | CROSSWAY TFS III; MAT aluminium; 700x50C max. WHS; 135x9 AST; BSA BBR |
| SIZE | XXS(39)-XS(43)-S(47)-M(51)-L(55)-XL(59) / XXS(39L)-XS(43L)-S(47L)-M(51L)-L(55L) |
| FORK | Suntour NEX HLO; Coil; 63 STR; lockout; 700x50C max. WHS |
| BRAKE LEVER | |
| BRAKE - FRONT | Tektro HD-M275 ; hydraulic brake |
| BRAKE - REAR | Tektro HD-M275 ; hydraulic brake |
| ROTOR - FRONT | Shimano RT10; 160 mm |
| ROTOR - REAR | Shimano RT10; 160 mm |
| CHAIN | KMC Z8.3 |
| CHAINWHEEL | Shimano ESSA FC-U2001 40 ATC; MAT Aluminium |
| CRANK/SIZE | 170mm-XXS/XS/S, 175mm-M up |
| BB SET | Shimano BB-UN101 73-123 |
| DERAILLEUR - FRONT | |
| DERAILLEUR - REAR | Shimano ESSA RD-U2000-8; GS |
| FREEWHEEL | Shimano CS-HG400-8; 11-45 ATC; 8 GER |
| PEDAL | VP VPE-891 |
| GRIP | MERIDA EC |
| HANDLEBAR | MERIDA CC; MAT aluminium; 660 WHB; 25 RHB |
| H-B STEM | MERIDA TK; MAT aluminium; 25.4 DSH; adjustable |
| H-STEM/SIZE | 110 mm all sizes |
| HEAD SET | MERIDA M2345 |
| HUB - FRONT | Shimano TX505; 100x9 WHF; 32 SPH; Centerlock |
| HUB - REAR | Shimano TX505; 135x9 WHR; 32 SPH; Centerlock |
| RIM | MERIDA CC; 17 IWR; MAT aluminium |
| SADDLE | MERIDA Cross Sport |
| SEAT CLAMP | MERIDA COMP QR |
| SEAT POST | MERIDA TK; 30.9 DSP; 13 SSB; 40 SST |
| SHIFTER - FRONT | |
| SHIFTER - REAR | Shimano ESSA SL-315-8R |
| INNER TUBE | 700*35/43 A.V |
| TYRE - FRONT | MERIDA K1171; 700x40C; wire |
| TYRE - REAR | MERIDA K1171; 700x40C; wire |
| Frame Name | CROSSWAY TFS III | CROSSWAY TFS III | CROSSWAY TFS III | CROSSWAY TFS III | CROSSWAY TFS III | CROSSWAY TFS III |
| Frame Size Name | XXS | XS | S | M | L | XL |
| Tyre Sizes | 28" | 28" | 28" | 28" | 28" | 28" |
| Frame Size Inch | ||||||
| ST seat tube [mm] | 390 | 430 | 470 | 510 | 550 | 590 |
| Ste Seat Tubes Effective Mm | ||||||
| STA seat tube actual [mm] | ||||||
| TT top tube [mm] | 560 | 565 | 580 | 590 | 610 | 630 |
| CS chain stay length [mm] | 460 | 460 | 460 | 460 | 460 | 460 |
| HTA head tube angle [°] | 70.5 | 70.5 | 71 | 71 | 71.5 | 71.5 |
| STA seat tube angle [°] | 74 | 74 | 73.5 | 73.5 | 73 | 73 |
| Stae Seat Tube Angle Effective Deg | ||||||
| Staa Seat Tube Angle Actual Deg | ||||||
| BD bottom bracket drop [mm] | 70 | 70 | 70 | 70 | 70 | 70 |
| HT head tube [mm] | 130 | 130 | 140 | 155 | 175 | 205 |
| FL fork length [mm] | 468 | 468 | 468 | 468 | 468 | 468 |
| FO fork offset [mm] | ||||||
| R reach [mm] | 382 | 387 | 393 | 399 | 406 | 418 |
| S stack [mm] | 620 | 620 | 631 | 645 | 667 | 695 |
| WB wheel base [mm] | 1076 | 1081 | 1085 | 1096 | 1104 | 1125 |
| SH stand over height [mm] | 678 | 713 | 748 | 782 | 817 | 854 |
