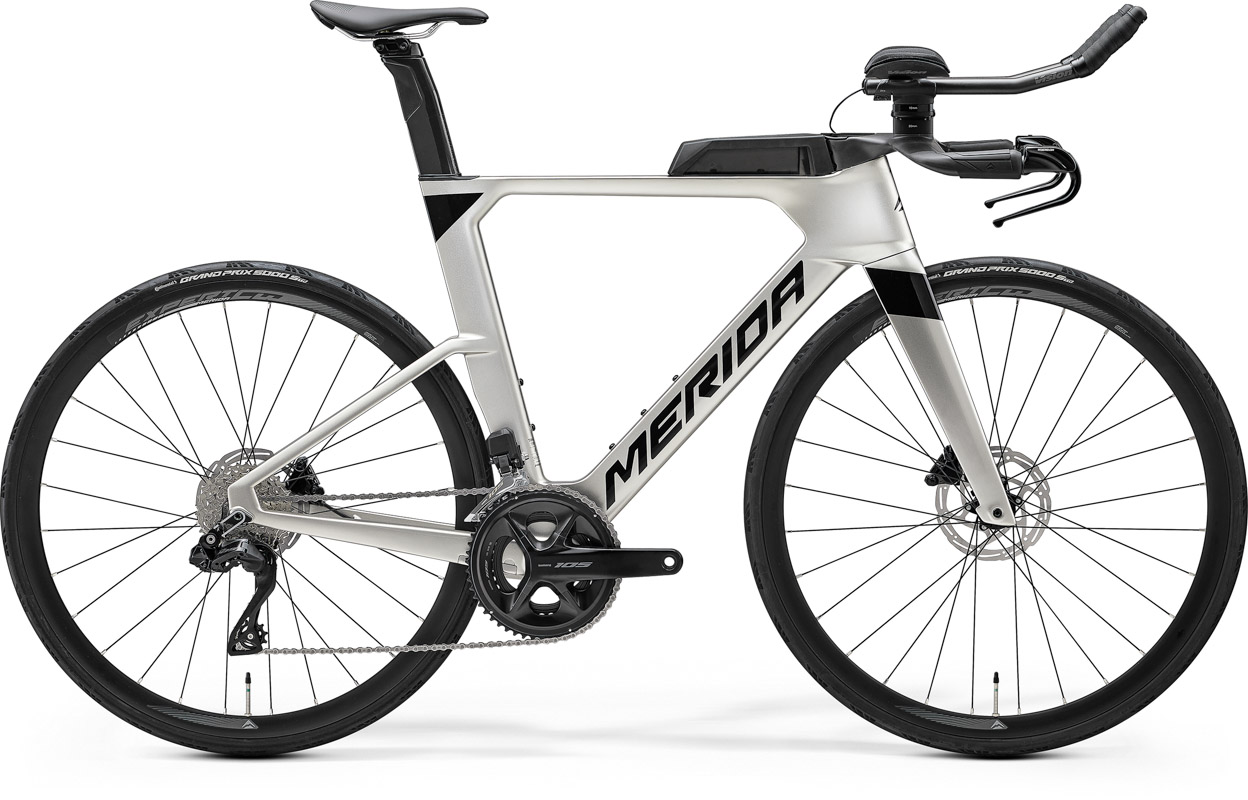

| FRAME | TIME-WARP TRI CF5 IV; MAT carbon; 700x30C max. WHS; 100x12/ 142x12 AST; Pressfit 86,5 |
| FORK | TIME-WARP TRI CF5 IV disc; MAT carbon; 700x30C max. WHS |
| BRAKE LEVER | REVER TRIVA |
| BRAKE - FRONT | REVER TRIVA; Hydraulic disc |
| BRAKE - REAR | REVER TRIVA; Hydraulic disc |
| ROTOR - FRONT | REVER TRIVA; 160mm |
| ROTOR - REAR | REVER TRIVA; 160mm |
| C-HOUSING | |
| CHAIN | Shimano CN-M6100-12 |
| CHAINWHEEL | Shimano 105; FCR7100, 52-36 ATC |
| CRANK/SIZE | 170 mm-XS, 172.5 mm-S/M, 175 mm-L |
| BB SET | SM-BB72-41B, Pressfit 86.5 |
| DERAILLEUR - FRONT | Shimano 105 Di2 |
| DERAILLEUR - REAR | Shimano 105 Di2 |
| FREEWHEEL | Shimano CS-R7101; 11-34 ATC; 12 GER |
| PEDAL | |
| GRIP | MERIDA ROAD Expert |
| HANDLEBAR | MERIDA Metron TT; MAT carbon |
| H-B STEM | MERIDA Metron TT; MAT carbon; -17 ASD |
| H-STEM/SIZE | |
| HUB - FRONT | Shimano HB-TC500; 100x12 WHF; 28 SPH; Centerlock |
| HUB - REAR | Shimano FH-TC500-HL; 12-142 WHR; 28 SPH; Centerlock |
| AXLE - FRONT | MERIDA EXPERT SL |
| AXLE - REAR | MERIDA EXPERT SL; including removable lever; 6/4mm allen key |
| RIM | MERIDA EXPERT CW; 19 IWR; 30 HRI; MAT aluminium; Tubeless ready (tubeless tape and valves not included) |
| SADDLE | MERIDA EXPERT SL; 6% recycled and 23% nature material; V-mount; incl. MERIDA minitool |
| SEAT CLAMP | TIME WARP TT insert |
| SEAT POST | MERIDA TEAM TT II; Aero shape; Carbon |
| SHIFTER - FRONT | REVER TRIVA |
| SHIFTER - REAR | REVER TRIVA |
| TYRE - FRONT | Continental Grand Prix 5000S TR; 700x28C; fold; tubeless ready |
| TYRE - REAR | Continental Grand Prix 5000S TR; 700x28C; fold; tubeless ready |
| E-SHIFT PARTS-2 | Battery BT-DN300 |
| E-SHIFT PARTS-3 | EWSD300*2 + EWSD300I*1 + EWJC130SM*2 + EWSD50*3 + EWJC200*2 |
| OTHER 5 | Brake lever Switch SW-R801 |
| Frame Name | TIME WARP TRI CF5 IV | TIME WARP TRI CF5 IV | TIME WARP TRI CF5 IV |
| Frame Size Name | S | M | L |
| Tyre Sizes | 28" | 28" | 28" |
| Frame Size Inch | |||
| ST seat tube [mm] | 500 | 540 | 580 |
| Ste Seat Tubes Effective Mm | |||
| STA seat tube actual [mm] | |||
| TT top tube [mm] | 510 | 550 | 570 |
| CS chain stay length [mm] | 415 | 415 | 415 |
| HTA head tube angle [°] | 72 | 72 | 72 |
| STA seat tube angle [°] | 76 | 76 | 76 |
| Stae Seat Tube Angle Effective Deg | |||
| Staa Seat Tube Angle Actual Deg | |||
| BD bottom bracket drop [mm] | 55 | 70 | 70 |
| HT head tube [mm] | 130 | 130 | 173 |
| FL fork length [mm] | 371 | 371 | 371 |
| FO fork offset [mm] | |||
| R reach [mm] | 381 | 417 | 427 |
| S stack [mm] | 518 | 533 | 574 |
| WB wheel base [mm] | 988 | 1022 | 1045 |
| SH stand over height [mm] | 781 | 799 | 838 |
